V Grooving and folding of sheet metals

Detail of overhead bar rack in the Brasserie created from V-Grooved Champagne Mirror PVD. The Devonshire Club Hotel - Interior Design: March & White - PVD coloured stainless steel: John Desmond Ltd

Detail of overhead bar rack in the Brasserie created from V-Grooved Champagne Mirror PVD.
The Devonshire Club Hotel
Interior Design: March & White
PVD coloured stainless steel: John Desmond Ltd

Creating precise, sharp angles and folds with V-Grooving machinery

Bending metal using a V-Grooving machine allows it to be folded to a tight radius, or sharp corner. This enables folded metal to mimic solid bar material at around a tenth of the cost and also avoids wastage. V-Grooved profiles look just like solid bar material but are light in weight and easier to transport and install.

See comparison of V-Grooved and folded profile with non V-Grooved profile

We can V-Groove and fold up to 4 metre lengths of material and thicknesses from 0.8mm to 6mm.


The V-Grooving machine in action

Depending on the thickness of the material and the type of fold required, the V-Groove machine cutting head will run a programmed number of times along the sheet material.

See the video of our V-Grooving machine in action in Wimbledon, London, UK

A way to achieve cost-effective high-specification finishes for today’s architects and interior designers

Architects aiming to achieve upmarket, high-specification interiors and finishes rather than specify solid materials can utilise V-Grooved folding. This method of creating solid-looking trims, architraves and skirting enables endless design options.

Using PVD stainless steel, the V-Grooving process is used to create colour-matched display fixtures, fascias, curtain-walling and cladding.

Where initially a solid metal has been considered for a project this can be value-engineered to V-Grooved profiles with no loss of aesthetic. For boutique hotels and luxury retail brands these lightweight V-Grooved profiles are a cost-effective alternative.

For exterior cladding and curtain-walling V-Groove folds allow for seamless butting-up or can create decorative shadow gaps.

V-Grooving is also called score-folding, V-cutting and back-scoring.

See where V-Grooving has been used to create bar glass-racks that appear to be solid brass


A selection of architectural applications for V-Grooving and folding

Architrave and panels in for elevator and lobby in V-Grooved PVD coloured stainless steel in Chocolate Vibration. - Fenman House, Apartment Building, 9 Handyside St, King’s Cross, London N1C 4DF. - Fabrication, V-Grooving and folding of PVD coloured stainless steel by John Desmond Ltd.

Architrave and panels in for elevator and lobby in V-Grooved PVD coloured stainless steel in Chocolate Vibration.

Fenman House, Apartment Building, 9 Handyside St, King’s Cross, London N1C 4DF.

Fabrication, V-Grooving and folding of PVD coloured stainless steel by John Desmond Ltd.

Elevator lobbies

Button panels, cladding, trim and architrave are created from V-Grooved and folded metals.

See case study for elevators and lobby created using V- Grooved panels, architrave and trim.

Escalators redolent of the Art Deco period with V-Grooved PVD stainless steel panels. - Architectural design by Make Architects. - PVD coloured stainless steel trim and panels by John Desmond Ltd.

Escalators redolent of the Art Deco period with V-Grooved PVD stainless steel panels.

Architectural design by Make Architects.

PVD coloured stainless steel trim and panels by John Desmond Ltd.

Interior panelling and cladding

PVD stainless steel sheet is V-Grooved and folded to create escalator side and base panels to enable close butting-up for a visually seamless effect.

See more on this project

V-grooved and folded door PVD coloured stainless steel sheet to form cladding to cubicle doors, appearing as solid material.

V-grooved and folded door PVD coloured stainless steel sheet to form cladding to cubicle doors, appearing as solid material.

Washrooms, cubicles and bathroom trims

The cubicle doors in this washroom have been created using PVD coloured stainless steel in Rose Gold Hairline.

Read more on this project

V-Grooved and folded elevator cab interior in PVD coloured stainless steel. - Krungsri Ploenchit Tower, Thailand. - Elevator:  A global elevator brand - Architecture and design: Palmer & Turner, Hong Kong - PVD coloured stainless steel by Double Stone Steel in partnership with John Desmond Ltd.

V-Grooved and folded elevator cab interior in PVD coloured stainless steel.
Krungsri Ploenchit Tower, Thailand.
Elevator: A global elevator brand
Architecture and design: Palmer & Turner, Hong Kong
PVD coloured stainless steel by Double Stone Steel in partnership with John Desmond Ltd.

Elevator cab interiors

V-Grooved and folded PVD coloured stainless steel in Nickel Hairline and Chrome Vibration for elevator cab interior with Brass Mirror detailing and Chocolate Vibration frieze and kickplate.

See more on elevator cab interiors

Looking up at the hollow canopy which, using V-Grooving, has been created to look as if it were solid bronze. - 15 Fetter Lane, EC4A, London. - PVD coloured stainless steel Brise soleil, canopy and column. - John Desmond Ltd.

Looking up at the hollow canopy which, using V-Grooving, has been created to look as if it were solid bronze.

15 Fetter Lane, EC4A, London.
PVD coloured stainless steel Brise soleil, canopy and column.
John Desmond Ltd.

Exterior cladding detail

These decorative brise soleil fins and exterior panels are created using V-Grooved and folded PVD coloured stainless steel in Chocolate textured stainless steel. The edge-folds give depth and the look of a solid material.

See more on this project

Detail of overhead bar rack in the Brasserie in Champagne Mirror PVD . The Devonshire Club Hotel Interior Design: March & White PVD coloured stainless steel: John Desmond Ltd

Detail of overhead bar rack in the Brasserie in Champagne Mirror PVD . The Devonshire Club Hotel Interior Design: March & White PVD coloured stainless steel: John Desmond Ltd

Hotel and restaurant, glass racks, bars and fittings

V-Grooved and folded stainless steel creates the appearance of solid brass bar for this overhead glass rack.

See more on this project

What does V-Grooving do?

V Grooving creates decorative grooves, channels and shadow gaps.

V-Grooving allows for sharp bends to be created from sheet material creating profiles that give the appearance of a solid material.

Solid, or bar, metal is both more expensive to purchase and creates wastage once shaped. Bending sheet material is a more cost-effective alternative.

PVD coloured stainless steel can be V-Grooved and folded without any damage in appearance to the PVD coating. Therefore PVD sheet material is ideal for V-Grooving and folding as a cost-effective alternative to Brass, Bronze, Copper, Gold and Iron.

V-Groove Profile MP11-N 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP11-N 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP09-C 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP09-C 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline


Benefits of V-Grooving

No wastage

Channelling out solid bar material creates waste from an expensive commodity. V-Grooving and folding creates minimum waste and is on average a tenth of the cost of working with solid bar metals.

Speed

A V-Groover can machine more grooves in one hour than a traditional milling machine or router can perform in eight hours. This means it is cheaper in the cost of labour and large volumes can be handled in relatively quick timescales.

Groove shape options

V-Grooving can be created in a broader “V” as well as other shapes. In other words a V-Groove can be a U-Groove or even a Square Groove enabling a range of design variations through the radii of the folds.

Creates small, fine-detail profiles

The V-Groover is set to a highly accurate measurement – so much so that a grooved sheet could be put through a second time with no deviation or alteration to the first groove. This means very precise and small profiles can be fabricated.

A cost-effective Aesthetic

V-Grooved and folded profiles in appearance look as if they are cold-drawn or extruded metal. This gives the impression of a solid bar and high-quality finish whilst being cost-effective, lighter in weight and cheaper to produce.

Precision enabling design options

Precision folding – V-Grooving allows for folding to a tight radius, creating sharp bends enabling a matching set of profiles across a range of applications such as fascias, architraves, skirtings, sockets and bar and counter-top frames.


Custom Grooves with Different Metal Inserts

custom_grooves_with_different_metal_inserts

Contact us on [email protected] to discuss V-Grooving options for your project.


V-Grooving Capacity

Length4 metres / 48 inches
Width1.2 metres 158 inches
ThicknessFrom 0.8mm to 6mm / 0.031 to 0.250 inches

Examples of V-Grooved and folded profiles in Double Stone Steel Bronze PVD coloured stainless steel

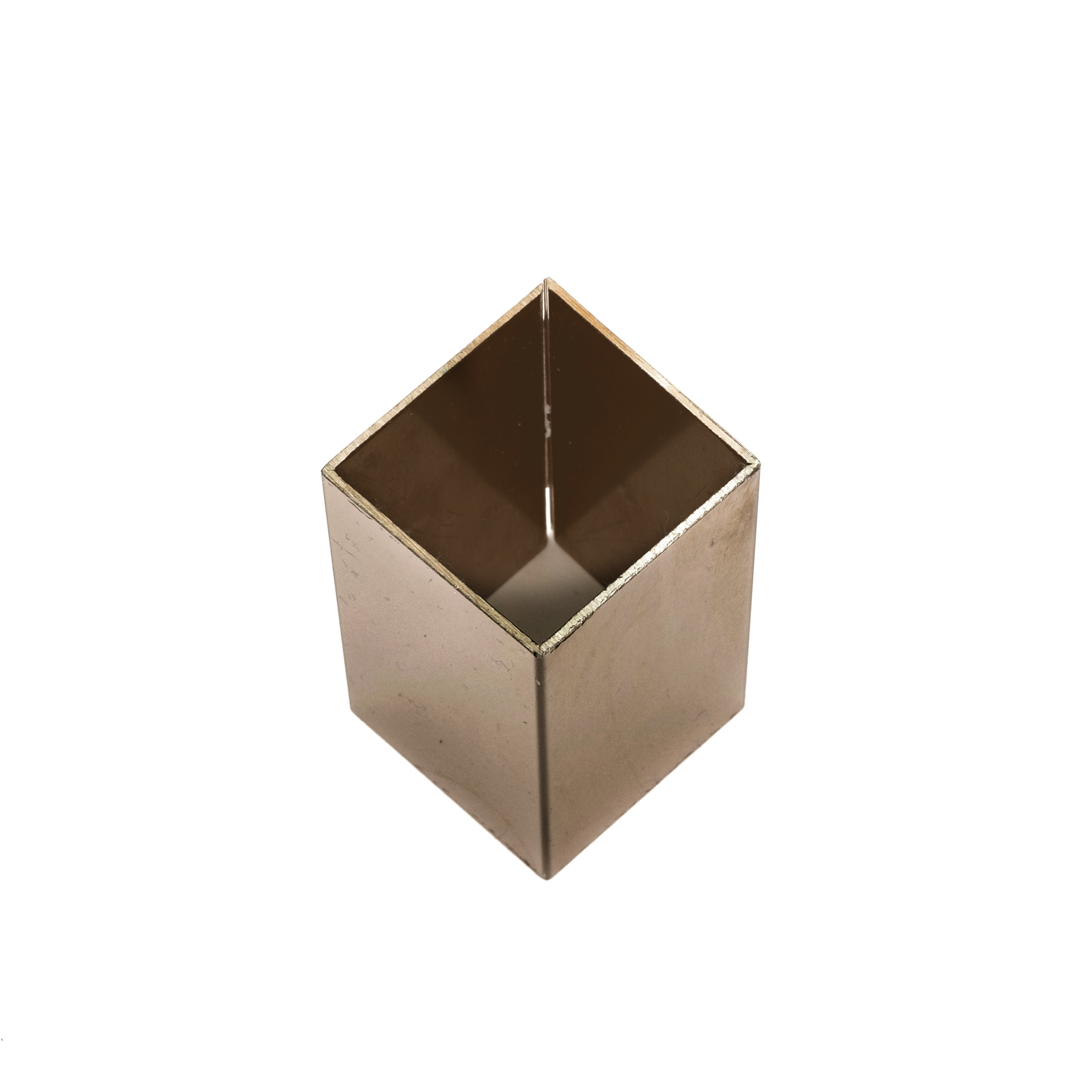

V-Groove Profile MP01-K 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Mirror

V-Groove Profile MP01-K 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Mirror

V-Groove Profile MP04-F 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP04-F 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

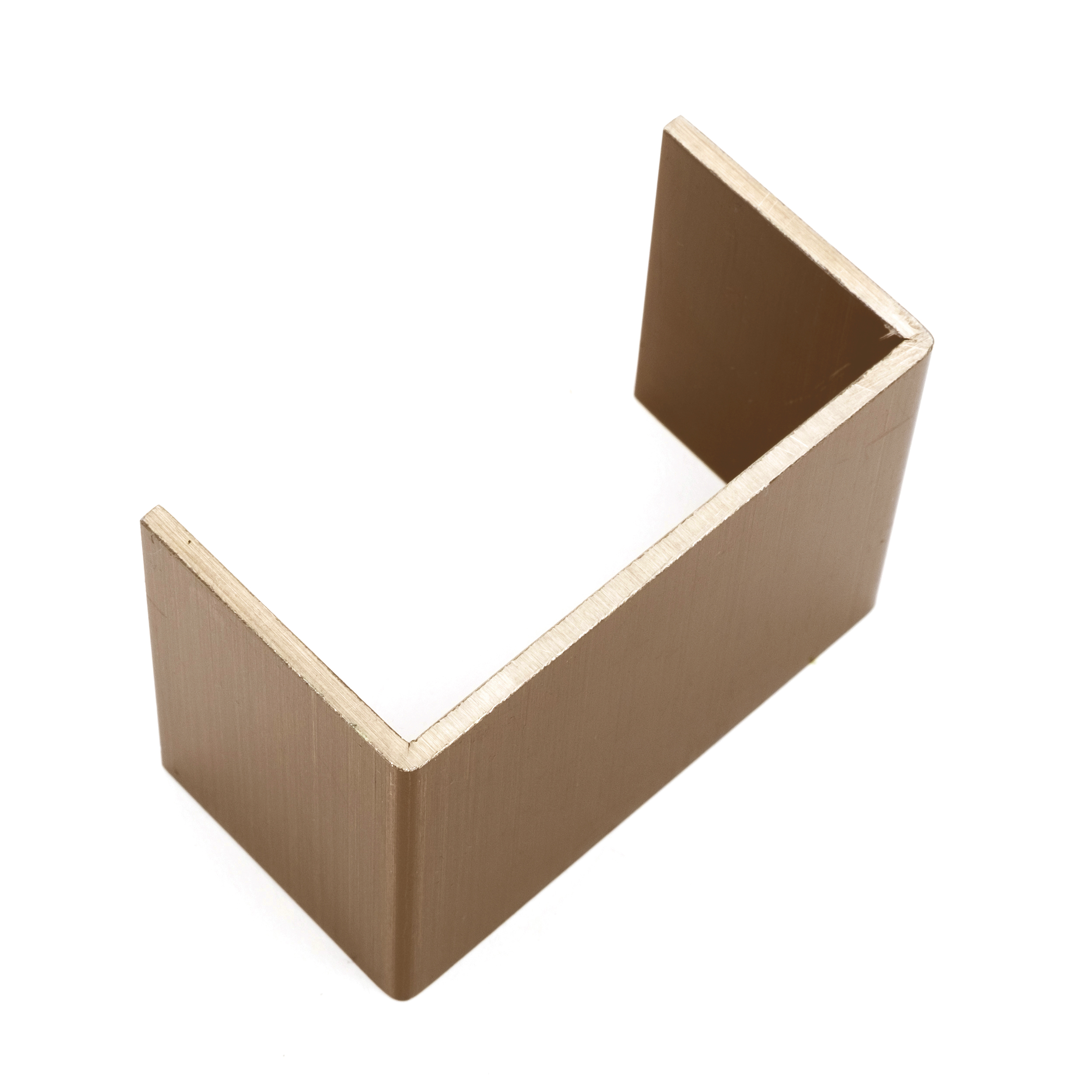

V-Groove Profile MP04-F 2.5mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP04-F 2.5mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

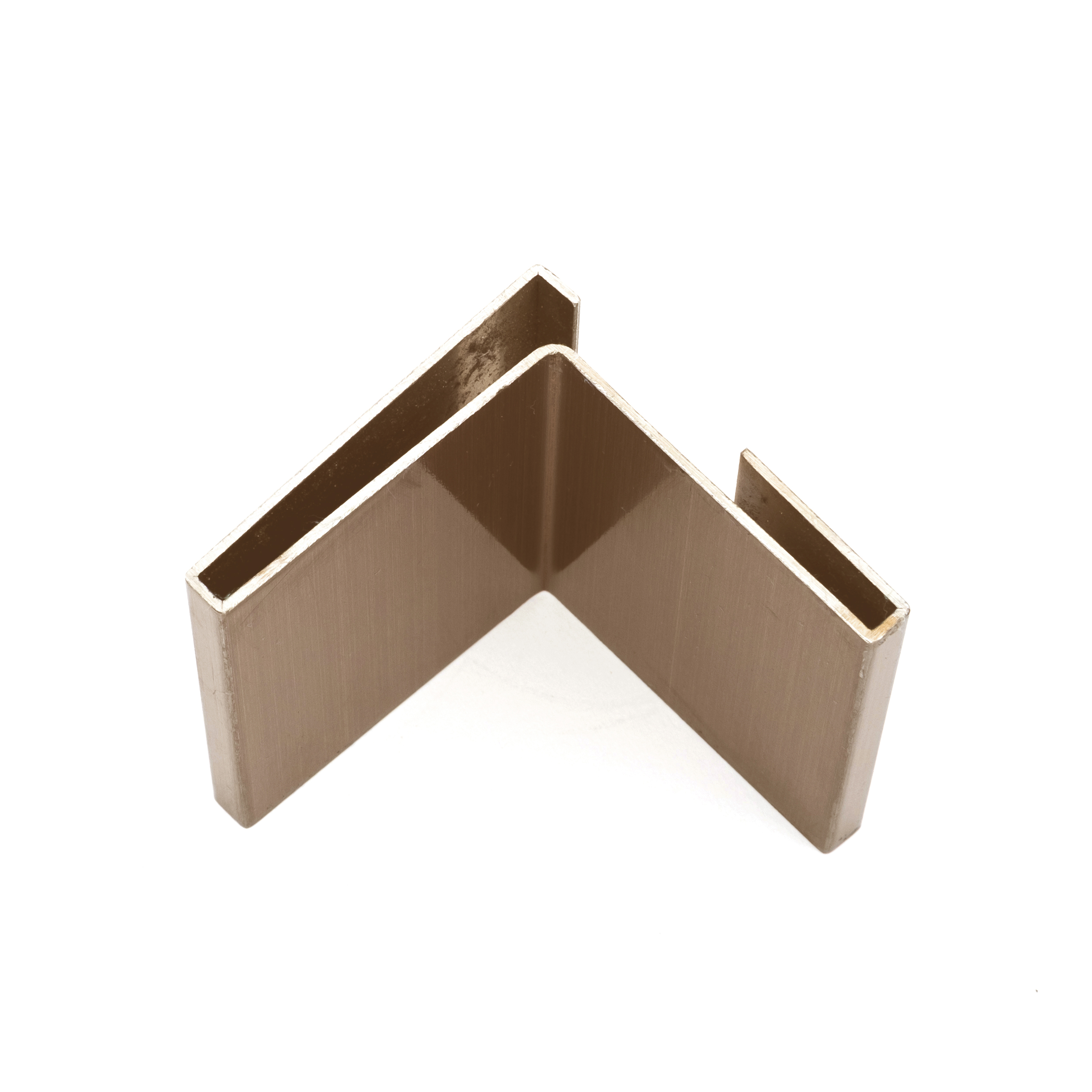

V-Groove Profile MP04-L 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Harline

V-Groove Profile MP04-L 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Harline

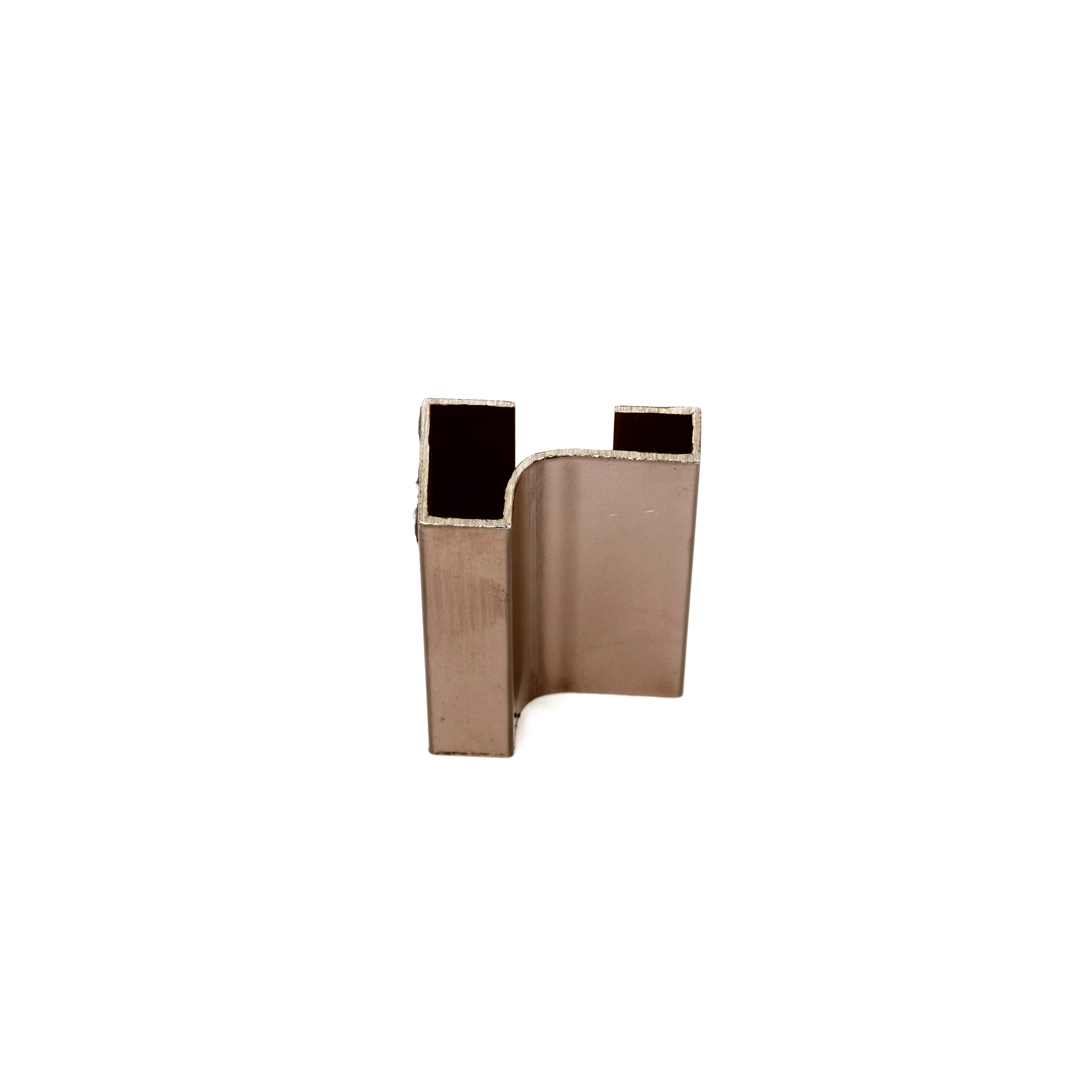

V-Groove Profile MP13-A 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Mirror

V-Groove Profile MP13-A 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Mirror

V-Groove Profile MP04-M 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP04-M 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP04-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP04-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP05-1 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP05-1 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

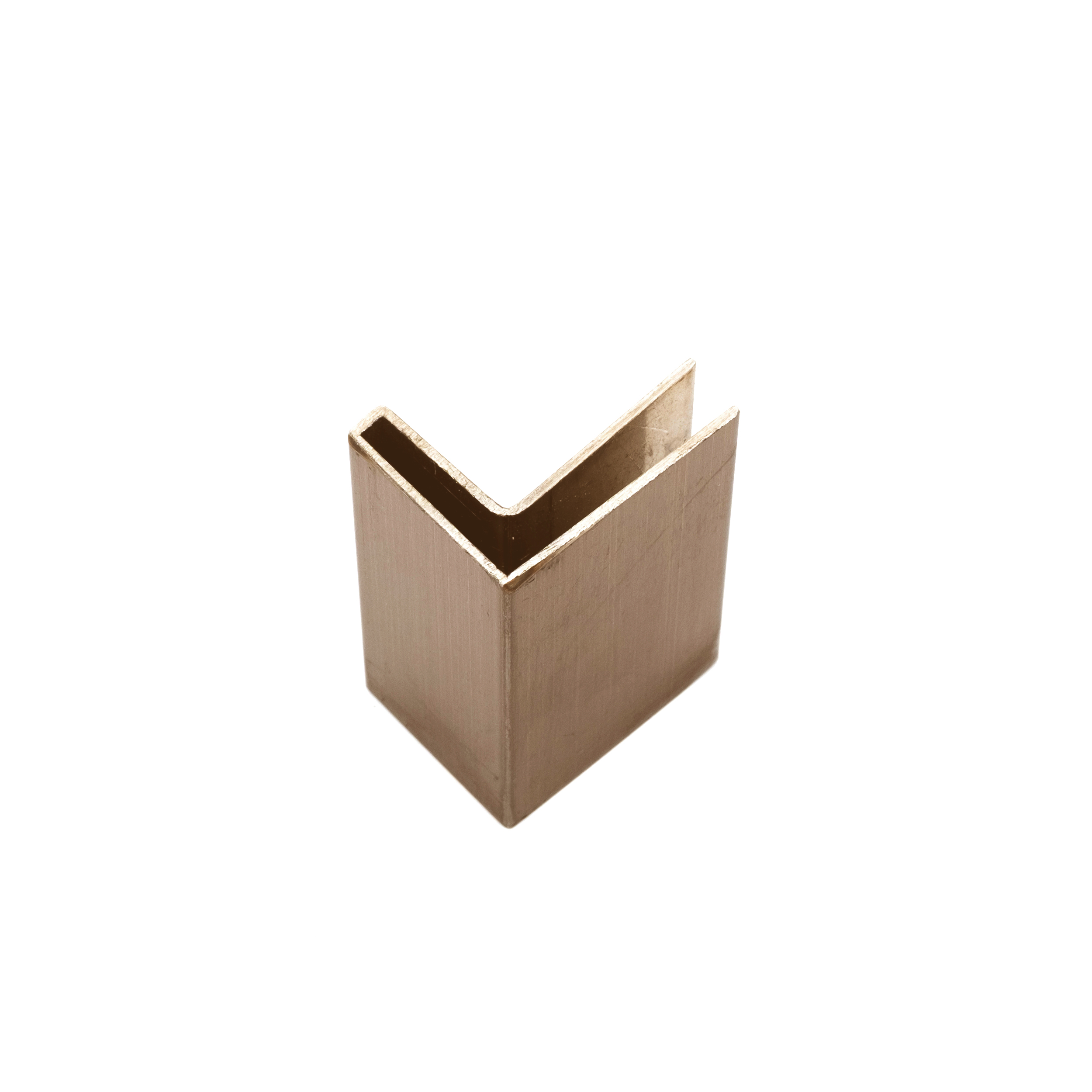

V-Groove Profile MP05-K 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP05-K 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

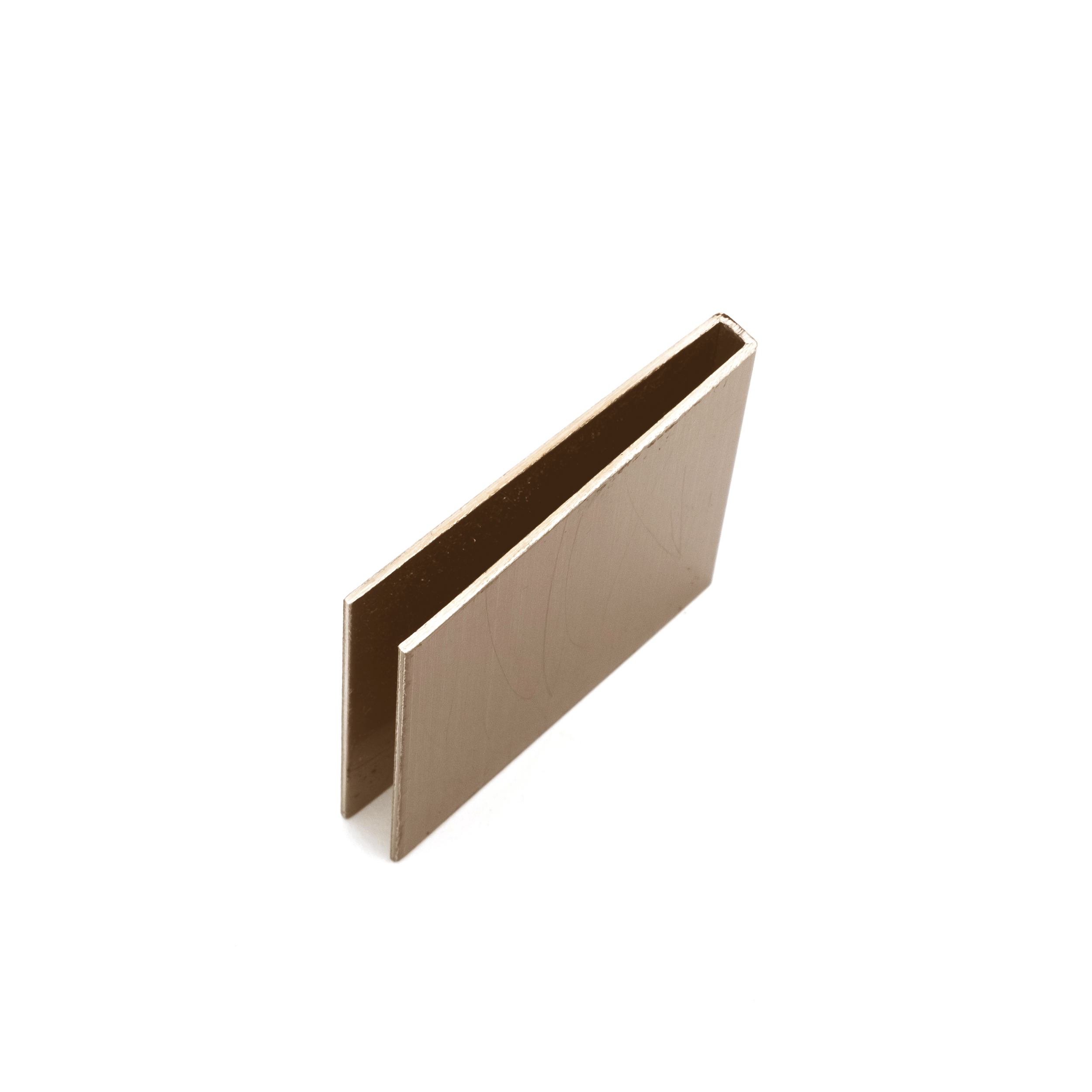

V-Groove Profile MP06-A 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP06-A 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP07-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Mirror

V-Groove Profile MP07-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Mirror

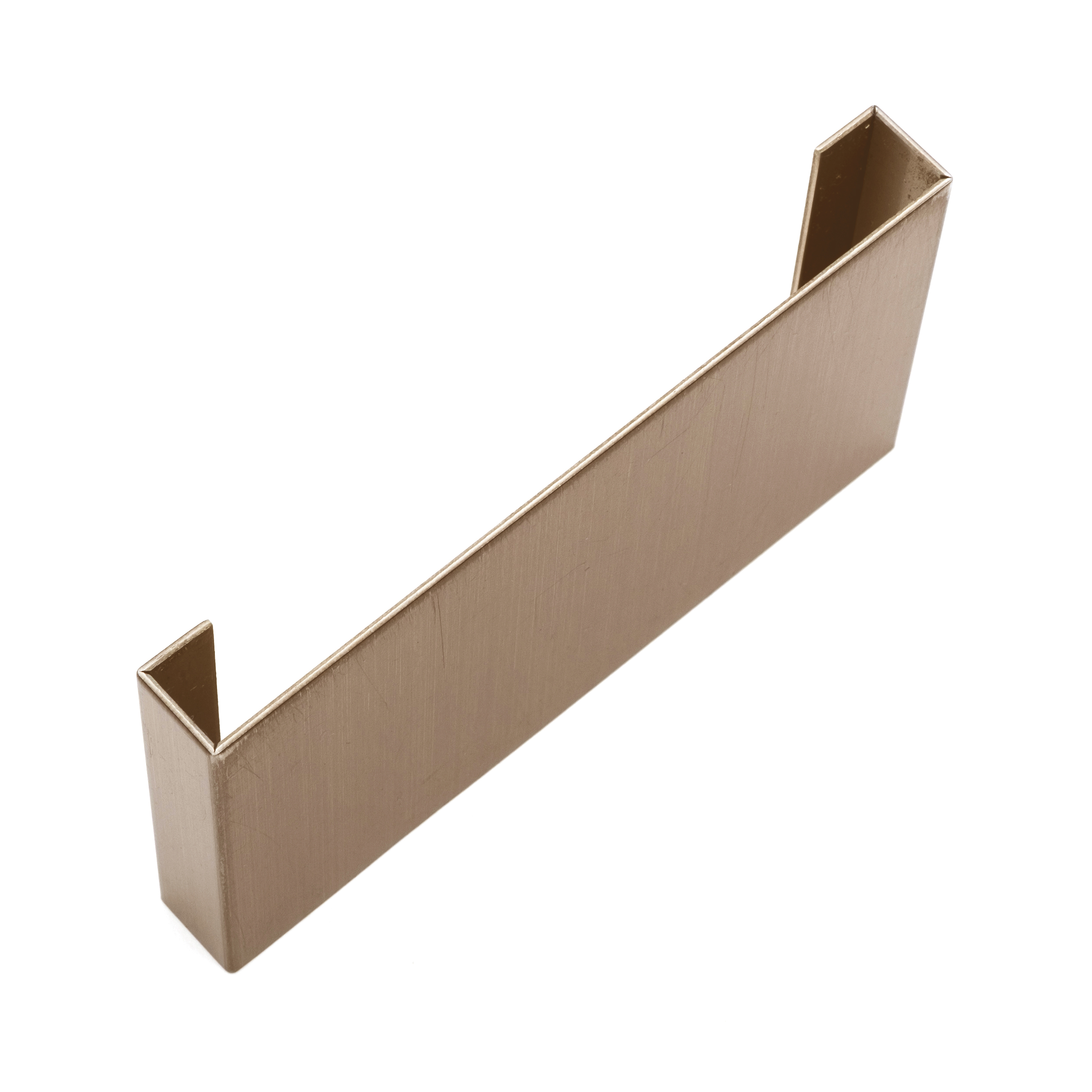

V-Groove Profile MP08-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP08-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

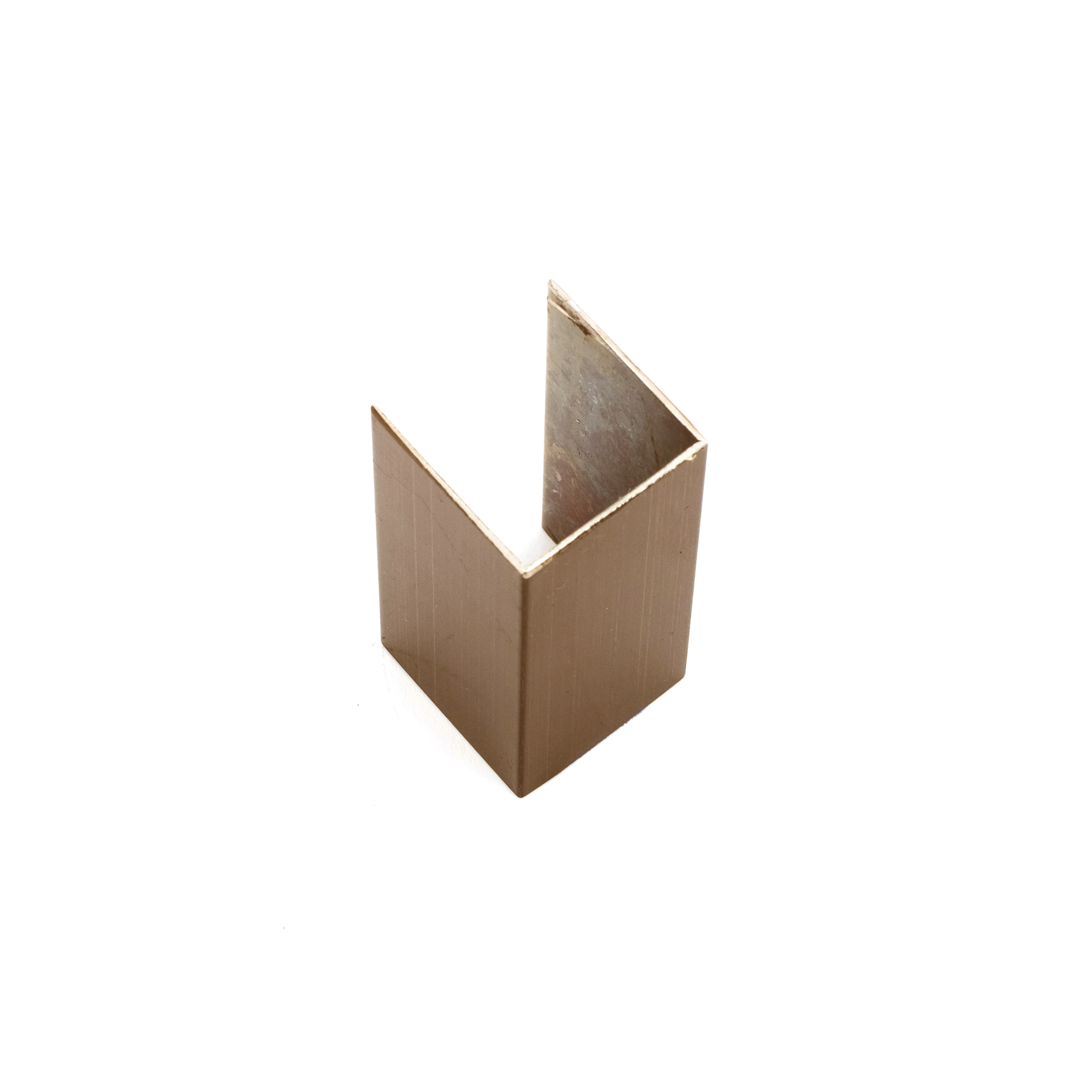

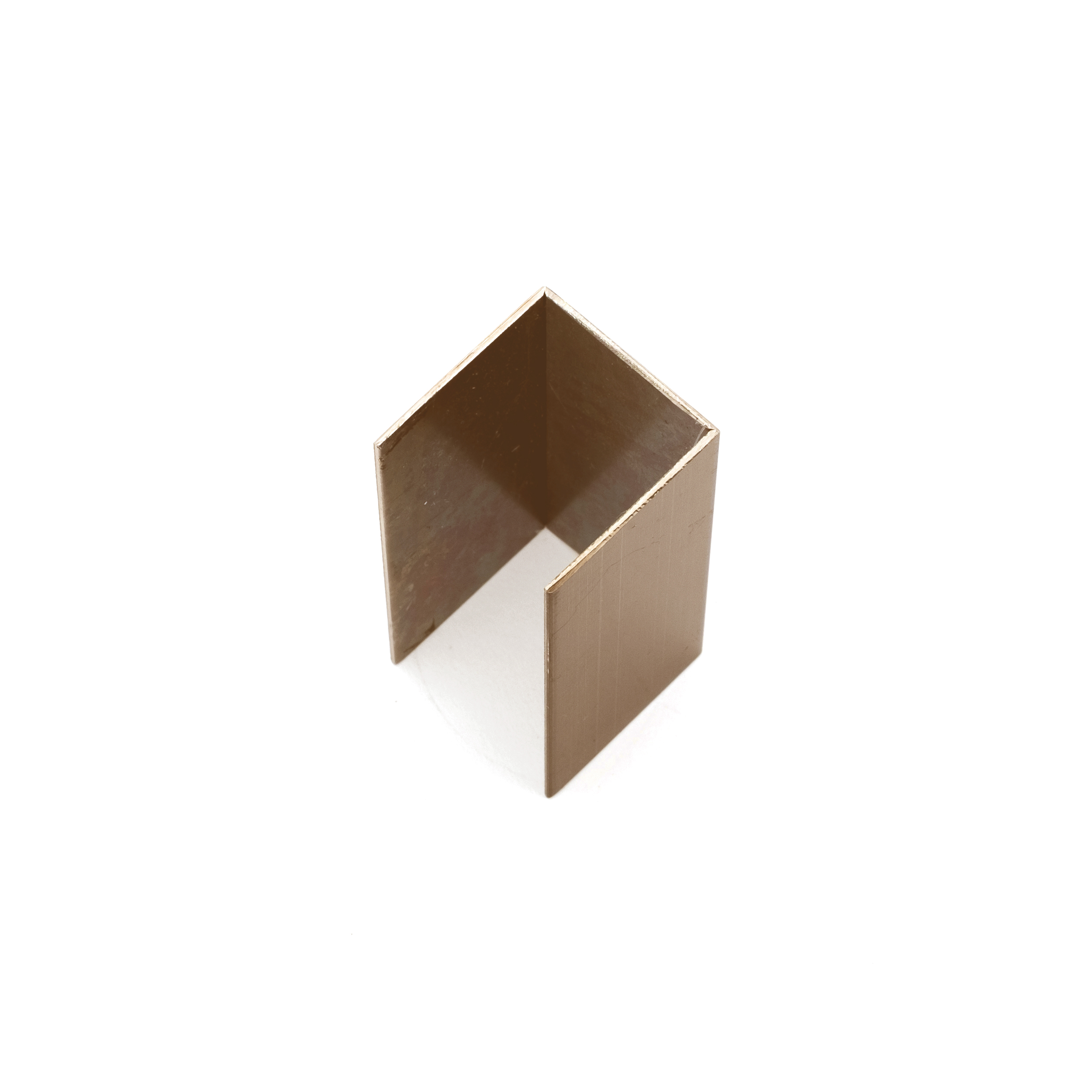

V-Groove Profile MP08-1 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP08-1 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP08-1 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP08-1 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

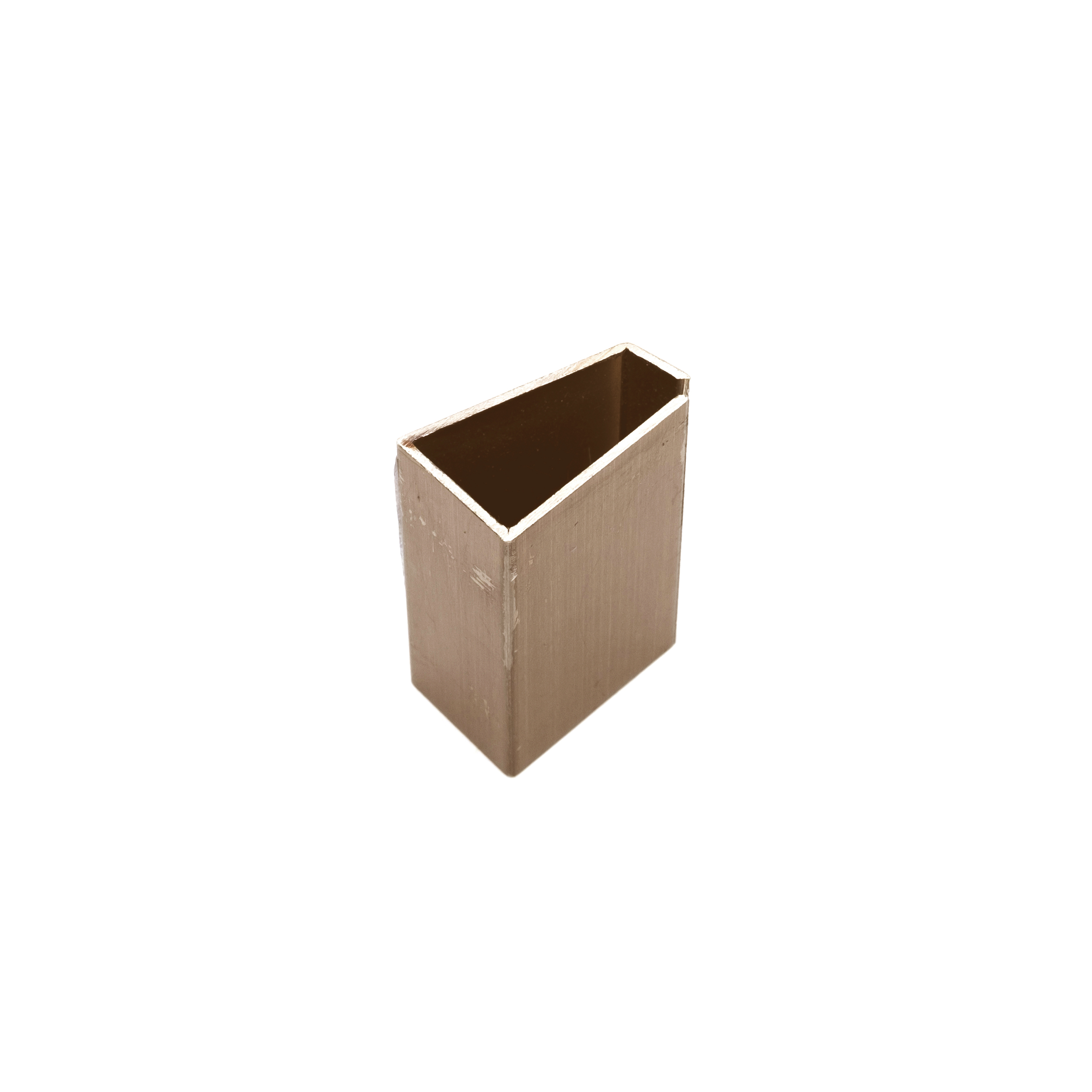

V-Groove Profile MP08-P 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP08-P 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Brush

V-Groove Profile MP09-C 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP09-C 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

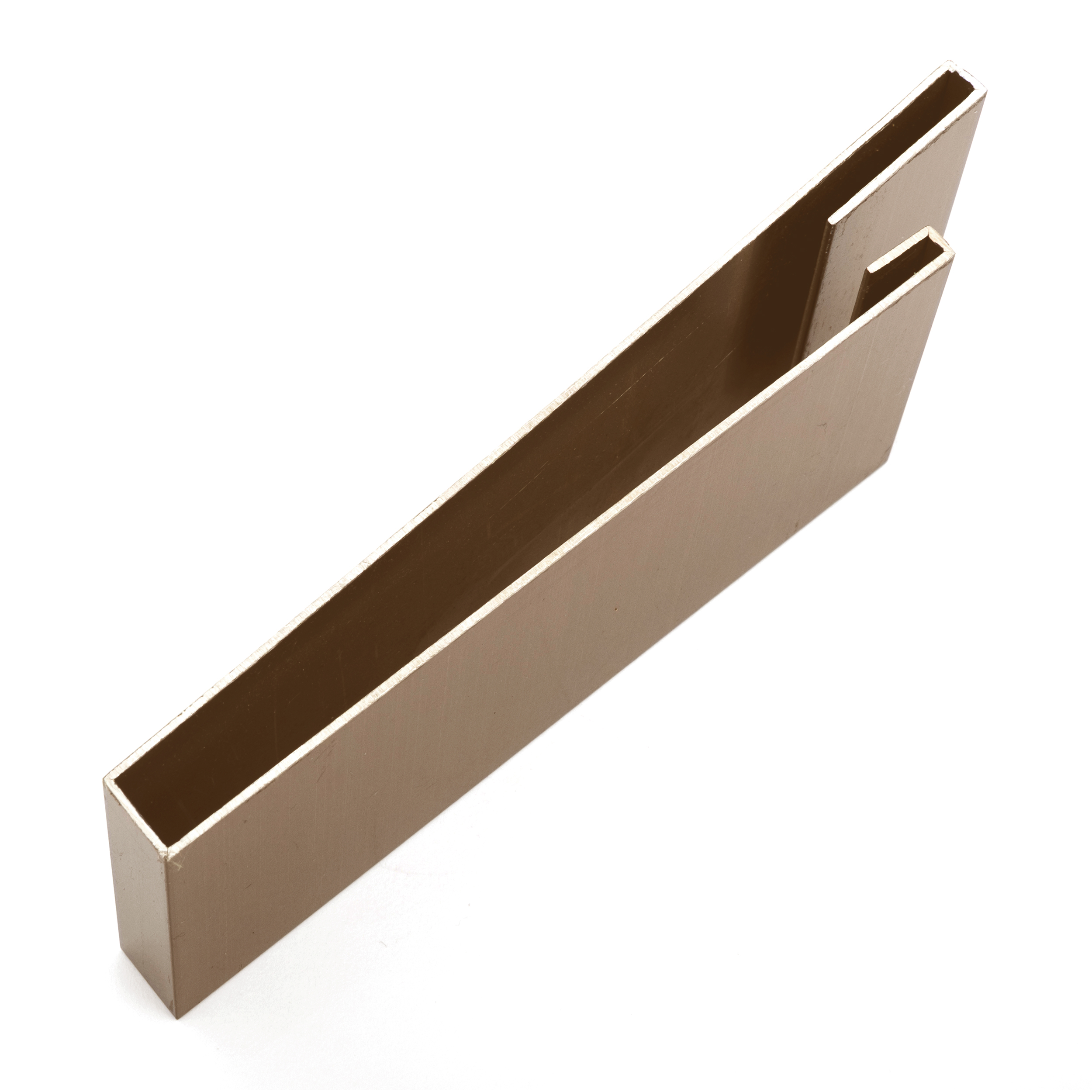

V-Groove Profile MP11-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP11-O 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

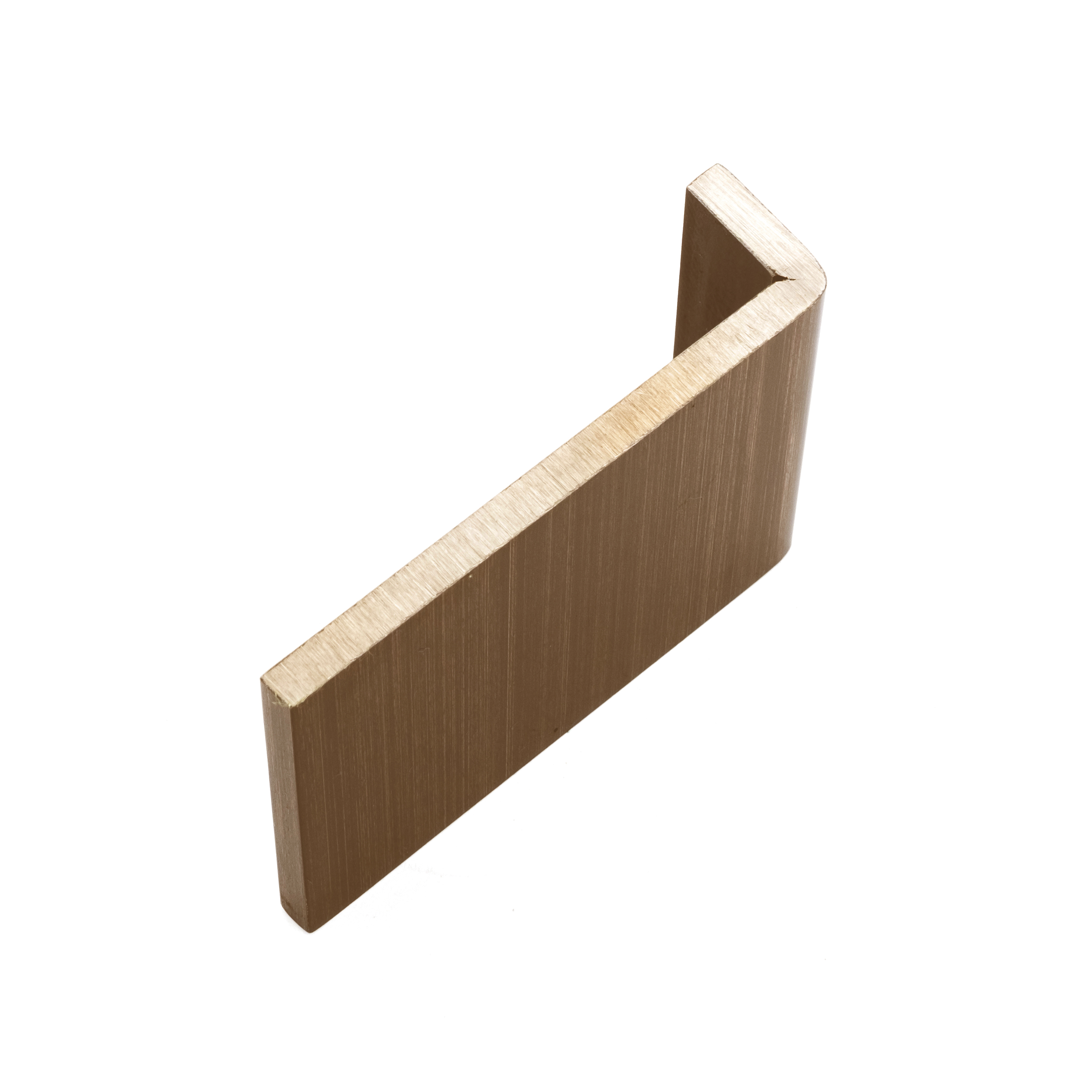

V-Groove Profile MP11-M 4.5mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP11-M 4.5mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

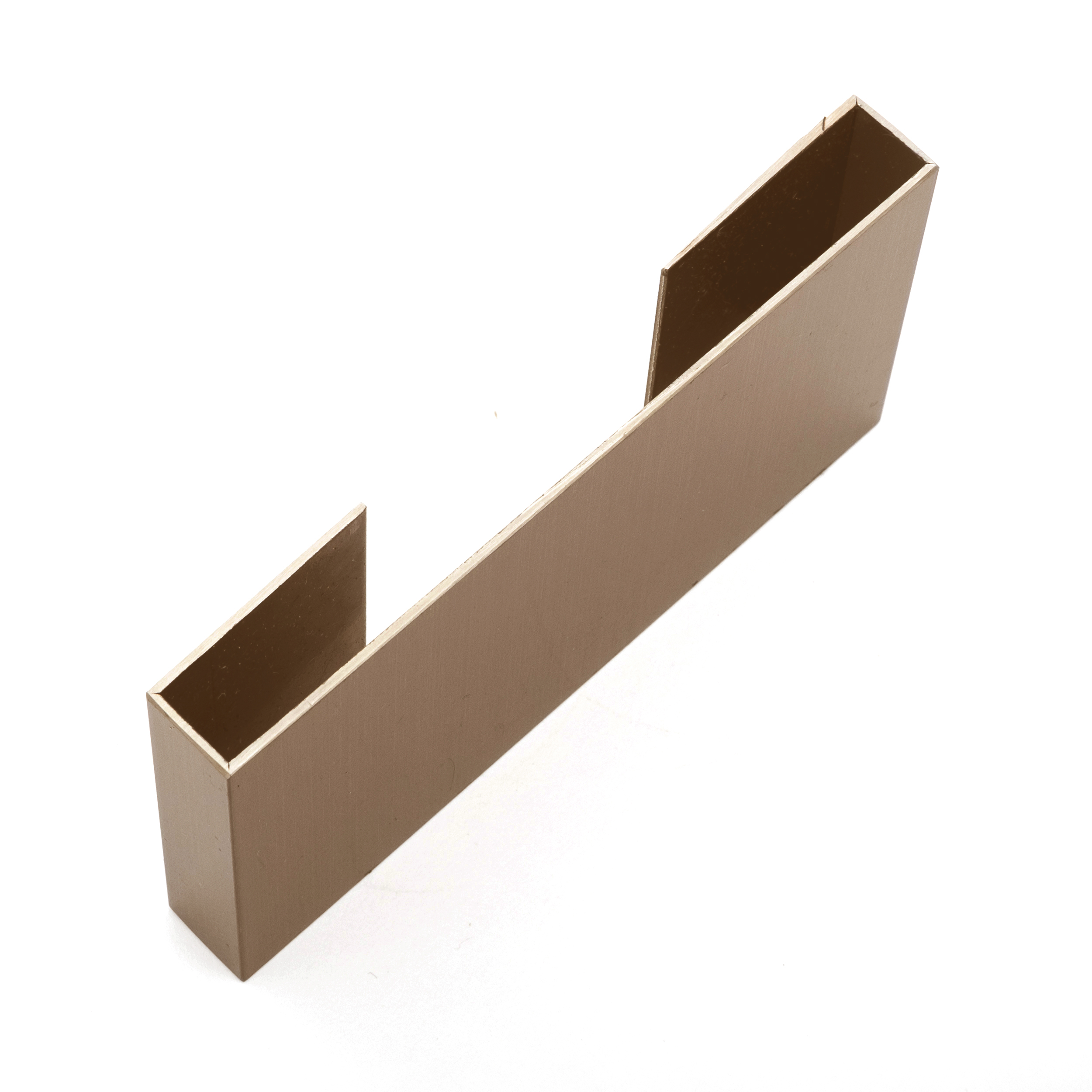

V-Groove Profile MP11-N 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline

V-Groove Profile MP11-N 1.25mm in Double Stone Steel PVD coloured stainless steel Bronze Hairline


The following materials can be V-Grooved and folded

PVD coloured stainless steel

PVD coloured stainless steel

PVD coloured stainless steel

PVD (Physical Vapour Deposition) coloured stainless steel is a sustainable alternative to anodising and electro-coating both of which involve chemical baths. PVD coloured stainless steel is created through the use of heat and gas and produces no waste products.

Stainless steel can be folded after PVD colouring without cracking or fissuring.

See more on PVD, the range of colours and order a sample

Textured stainless steel

Textured stainless steel

Textured stainless steel

Textured stainless steel brings another dimension to specifying PVD coloured stainless steel. The range of embossed, surfaces provide tactile qualities as well as reflecting light in subtle ways which add to the creative possibilities when designing with this material.

Contact Andrè via [email protected] to ask about textured stainless steel.

Cor-ten

Cor-ten

Cor-ten

Cor-ten or, or weathering steel, is designed to develop a rusty patina, be corrosion-resistant and, of course, not need painting or touching up.

John Desmond Ltd have formulated a specialised method of accelerating the development of the patina. This means that fabrication can be carried out in this material and yet meet commercially viable timescales.

Contact Alex via [email protected] to ask about patinated brass for your project.

Patinated Brass

Patinated Brass

Patinated Brass

Left untouched, all brass would develop into patinated brass. However ready-patinated brass created by John Desmond Ltd already has an aged, richly-toned surface and is stabilised in appearance with the application of a natural sealant.

Contact Alex via [email protected] to ask about a Cor-ten finish for your project.

Blackened Stainless Steel

Blackened Stainless Steel

Blackened stainless steel

The blackening of stainless steel actually increases its corrosion-resistance however is mostly specified for its gleaming appearance not easily achieved through other methods.

See how blackened stainless steel has been used to create a dramatic staircase at Google headquarters

Vibration stainless steel

Vibration stainless steel

Vibration stainless steel

Vibration finish stainless steel is a versatile finish for stainless steel being non-directional and relatively un-reflective. It is one of a range of finishes on stainless steel offered by John Desmond Ltd.

See PVD coloured stainless steel in Vibration and other finishes and order a sample.

Shot-peened stainless steel

Shot-peened stainless steel

Shot-peened stainless steel

Shot-peening, also known as sand-blasting, increases the longevity of steel and is commonly used for aeronautical components. However it also has an interesting and versatile non-directional appearance and is consequently specified for its aesthetic as well as its relative non-reflectancy.

Enquire to John Desmond Ltd about specifying shot-peened steel and stainless steel [email protected]

Anodised aluminium

Anodised aluminium

Anodised aluminium

Aluminium is a lightweight and corrosion-resistant material and through the process of anodising can be transformed into a range of coloured finishes.

See the domed gold anodised alumnium ceiling at Wood Lane Underground Station

Laser-cut metal

Laser-cut metal

Laser-cutting

The laser-cutting of stainless steel combined with PVD colouring and V-grooving provides a multitude of creative possibilities for interior and exterior applications.

See how lift-core and stairwell became a dramatic feature in the upgrade of The Gaslight Building
